This stainless-steel feed mixer is used for blending corn meal, soybean meal, grass powder, and additives. It is corrosion resistant, works with both wet and dry materials, and delivers uniform mixing.
It can also be applied to plastic pellets, seasonings, fertilizers, and chemical powders, offering wide versatility.

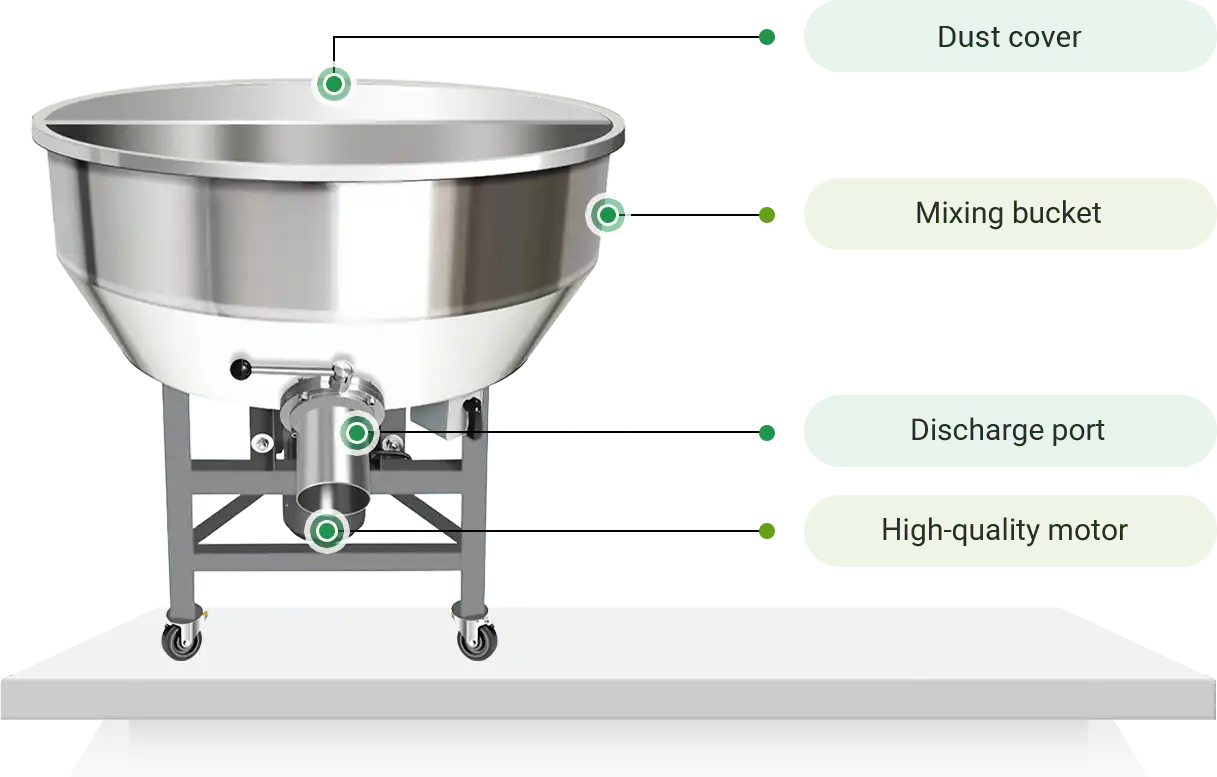

Structure and Working Principle
The stainless steel feed mixer consists of the body, mixing chamber, paddles, transmission system, and motor.
The mixing tank has an open dust cover for easy feeding and real time observation during operation, ensuring effective mixing.
Once started, the motor drives the paddles through the transmission system. The raw materials are turned, cut, and pushed inside the tank, ensuring a consistent and uniform mix.

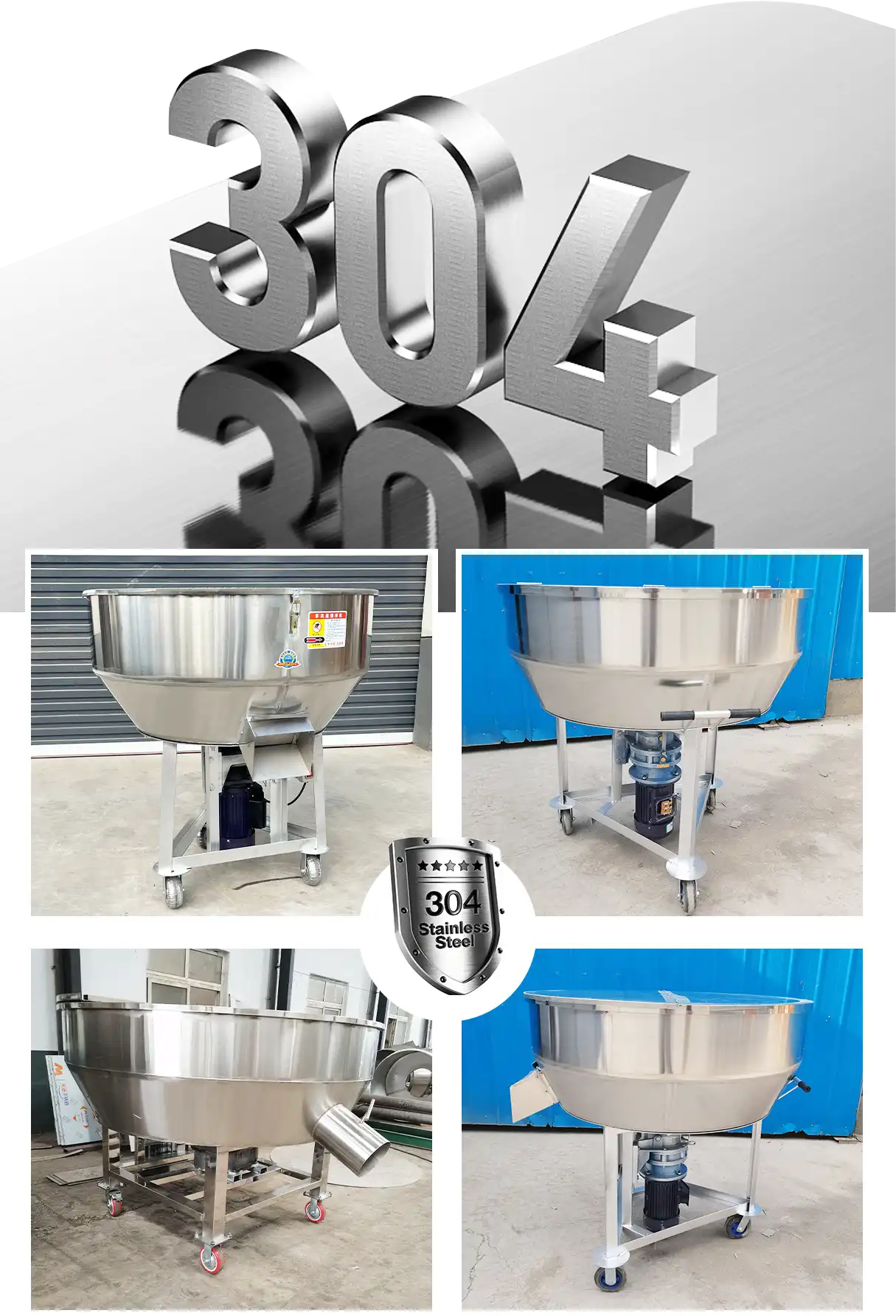

Durable stainless steel, Multi use
Built with premium stainless steel, the machine is corrosion and wear resistant. It easily handles both wet and dry materials and fits the needs of feed, food, chemical, and other industries.
Standard 201 stainless steel for feed and plastic pellets.
Optional upgrade to 304 food grade stainless steel for grains and chemical materials.
Wide outlet, Fast discharge
The widened outlet ensures fast, smooth discharge without blockages, greatly improving efficiency and reducing cleaning effort.
Reinforced body, Long service life
Thickened tank for greater strength, pressure and impact resistance, with long lasting durability.
Reinforced support ensures stable load bearing and safe continuous operation.

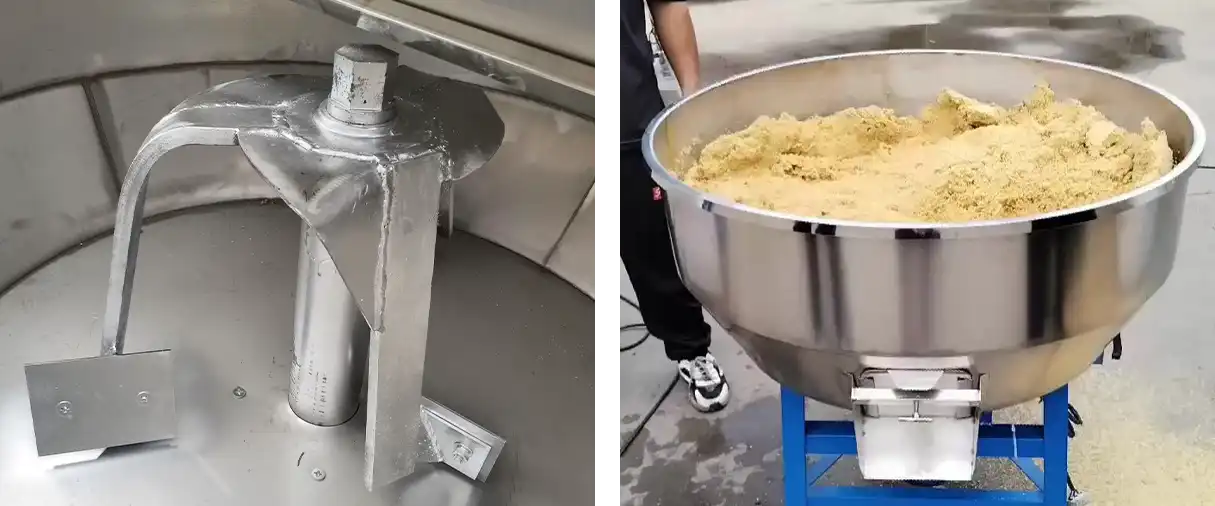

Optimized paddle design, better mixing
The paddles are scientifically designed and arranged for thorough turning and high mixing uniformity.
Both powders and pellets can be blended evenly, ensuring high quality material for the next process.
Product Specs
| Model |
Capacity (kg/Each stirring) |
Volume(L) |
Host power (kw) |
Machine size (mm) |
Weight (kg) |
| 30 | 35 | 58 | 3 | 580*580*500 | 22 |
| 50 | 70 | 130 | 3 | 690*690*900 | 52 |
| 120 | 120 | 210 | 3 | 890*890*920 | 56 |
| 150 | 180 | 280 | 3 | 1040*1040*920 | 74 |
| 200 | 230 | 360 | 3 | 1140*1140*950 | 80 |
| 300 | 310 | 480 | 4.5 | 1290*1290*920 | 120 |
| 500 | 550 | 890 | 4.5 | 1490*1490*930 | 180 |
*For areas with limited electricity, a diesel driven option is available.
FAQ
How long does one mixing cycle take?
Normally 3–5 minutes. It depends on the moisture level and how much material you load. Wet feed may take a little longer to get a good mix.
Why is there no plug when shipped?
Because every region uses different power standards. This way you can match the right plug on site, which is safer and more practical.
Can it be connected directly to the pellet mill?
Yes. The mixer discharges straight into the pellet mill, so the two machines work together smoothly for continuous operation.
Is daily cleaning convenient?
Yes. Stainless steel construction and a wide discharge port reduce residue. Usually a quick rinse with water or air is enough.
