The branch shredder, or wood crusher, quickly processes branches, straw, twigs, and garden waste. It handles orchard prunings, landscape cuttings, and forestry residues with ease.
Wood chips can be used for cattle and sheep feed, garden mulch, compost, bedding, or biomass fuel, helping you recycle waste and cut costs.
Structure and Working Principle

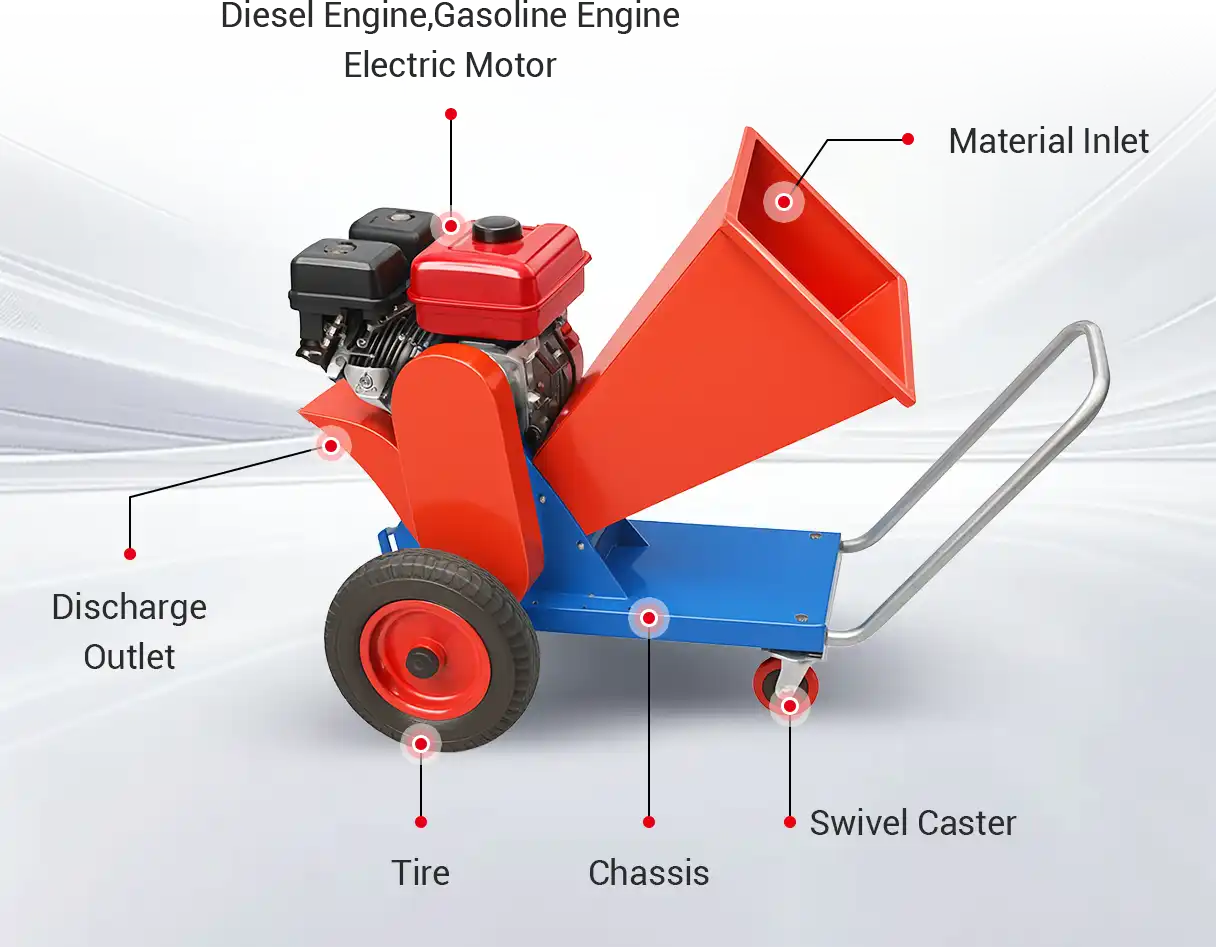

The branch shredder is mainly composed of an engine, feeding inlet, cutting blades, crushing chamber, discharge outlet, tire (swivel caster) and chassis.

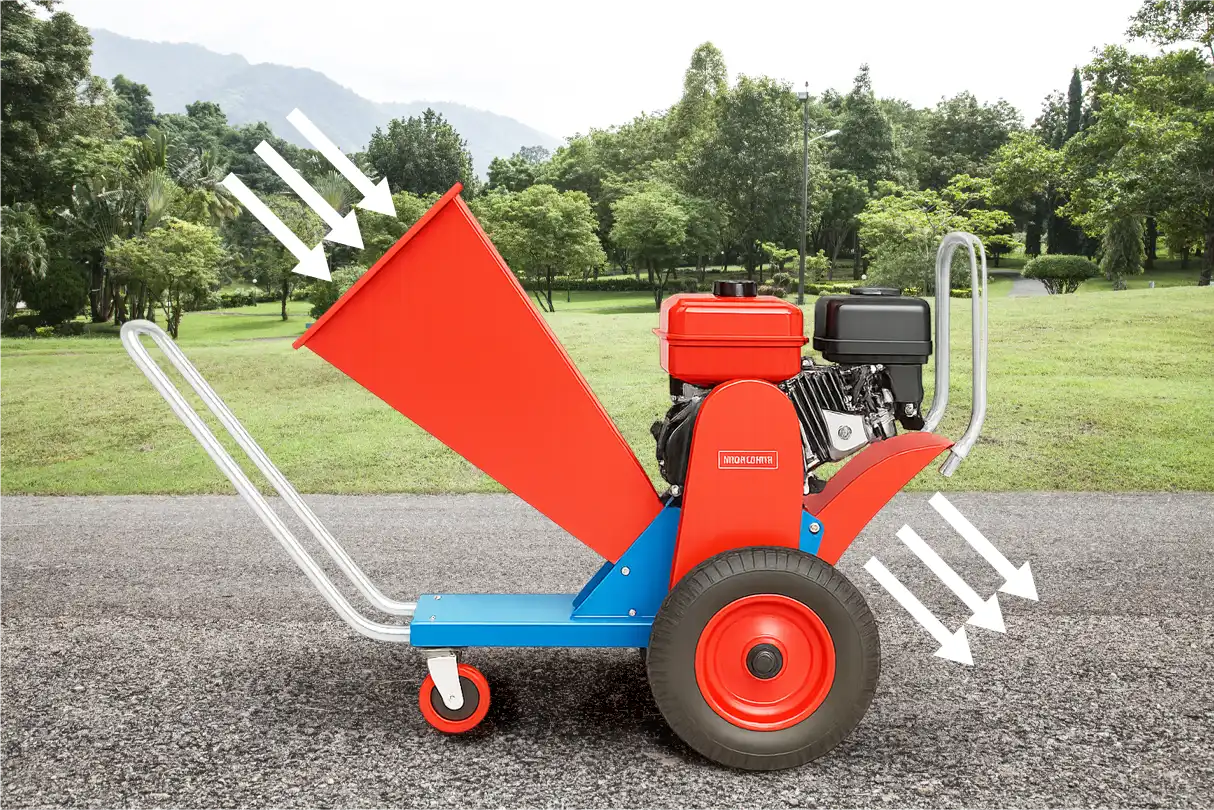

When material enters the crushing chamber, the rotating disc and blades cut, tear, and shred it into uniform wood chips. The chips are then discharged by airflow or gravity.
The machine is built with thick steel and an efficient power transmission system. It runs steadily and can process branches and garden waste with high efficiency.
Power Options
Choose the right power type based on your working environment and material conditions.
Diesel Drive
Delivers strong torque even at low speed, with powerful cutting force to handle thick branches and hardwood steadily. Suitable for long continuous operation. The bottom wheels make it easy to move between sites.

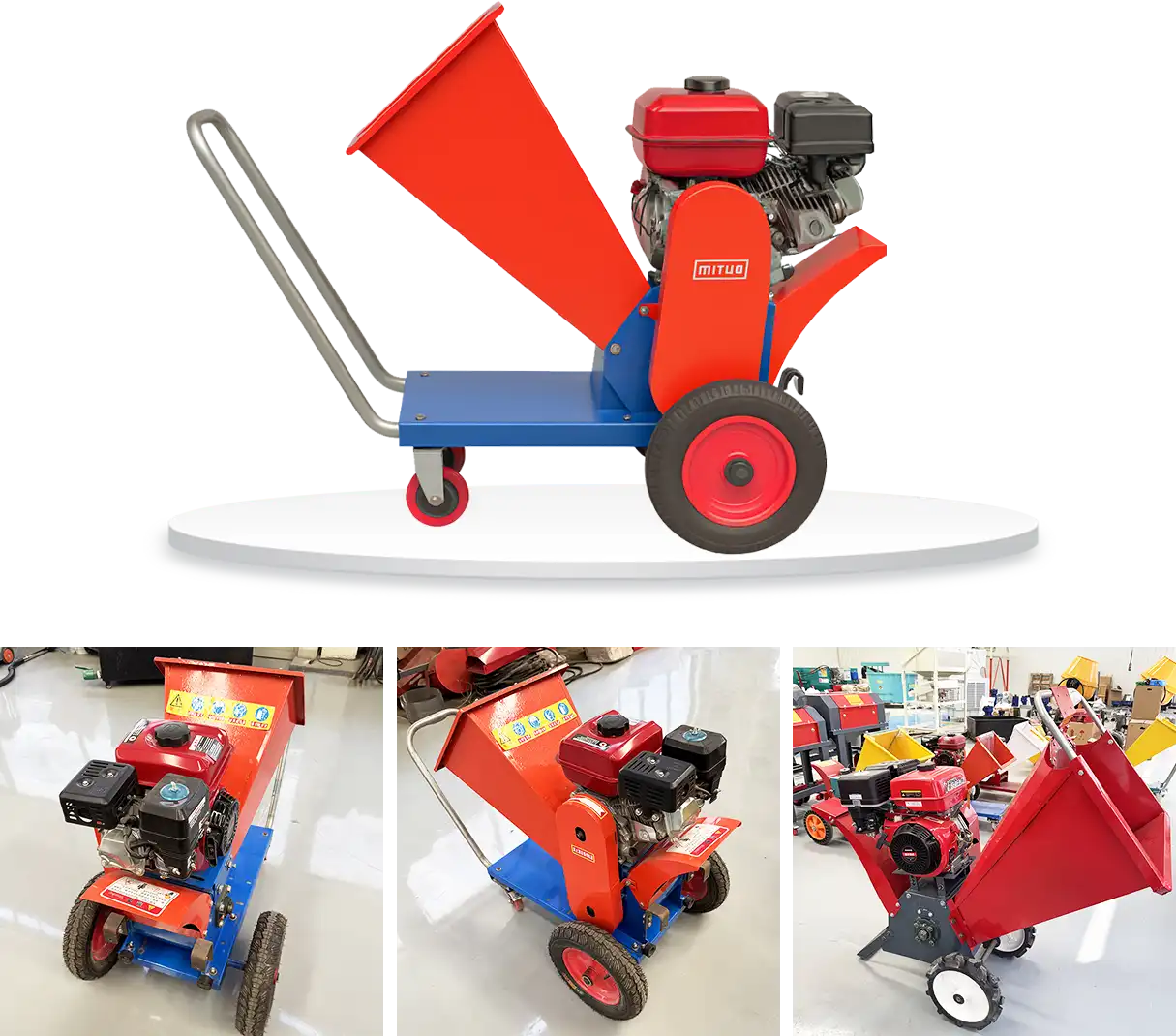

Gasoline Drive
Slightly lower torque than diesel but more affordable. Lighter in weight and easier to move, ideal for gardens, orchards, and small farms to process daily prunings.
Electric Drive
Low energy use, lower cost, and easy maintenance with zero emissions. Best for fixed sites with reliable power supply, though less mobile compared to diesel and gasoline.
Applicable Materials
Selection should be tailored to your specific operating conditions and raw materials.
Applications
- Feed crushing for cattle and sheep
- Pruning and daily cleanup in orchards and farms
- Branch and leaf disposal in landscaping and municipal care
- Forestry cleanup and wood processing leftovers
- Waste handling in parks, campuses, and communities
- Raw material for biomass energy and organic fertilizer
Product Specifications
| Model | Power |
Capacity (kg/h) |
Total Weight (kg) |
| Gasoline Model | 7.5HP | 800-1000 | 76 |
| Diesel Model | 8HP | 800-1000 | 78 |
| Electric Motor Model | 5.5KW | 800-1000 | 77 |
*Available in high output models, with customization to match your needs.
Product Advantages
- Wide inlet for easy wood feeding
- Titanium alloy blades, sharp and durable
- Large rubber tires for smooth mobility
- Strong metal body for long service life
- Emergency brake ensures safe use
